LZT Acrylic Rotameter

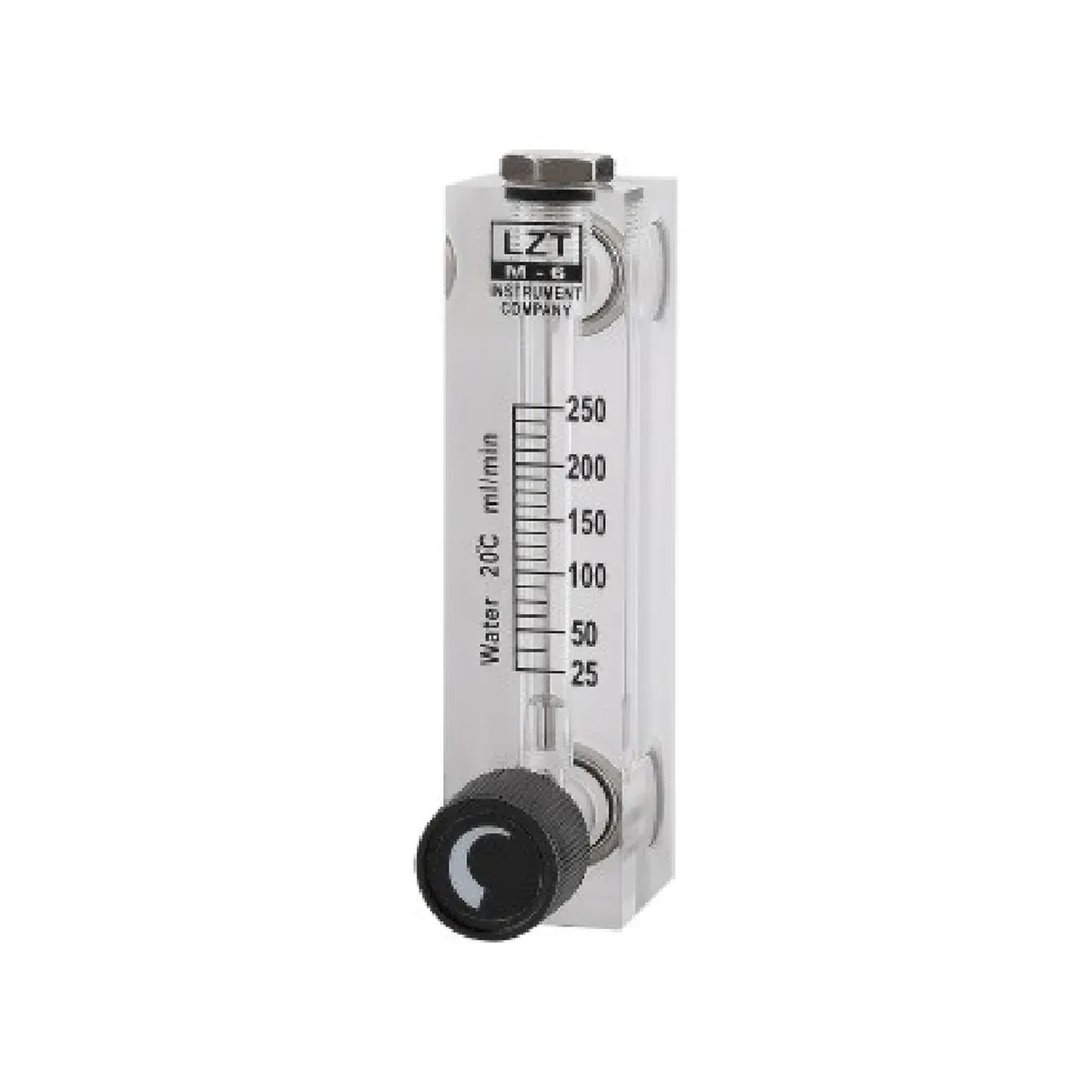

LZT-6T Acrylic Rotameter
LZT-6T panel-mount acrylic rotameter for low-flow liquid and gas measurement, part of the LZT acrylic variable-area series.

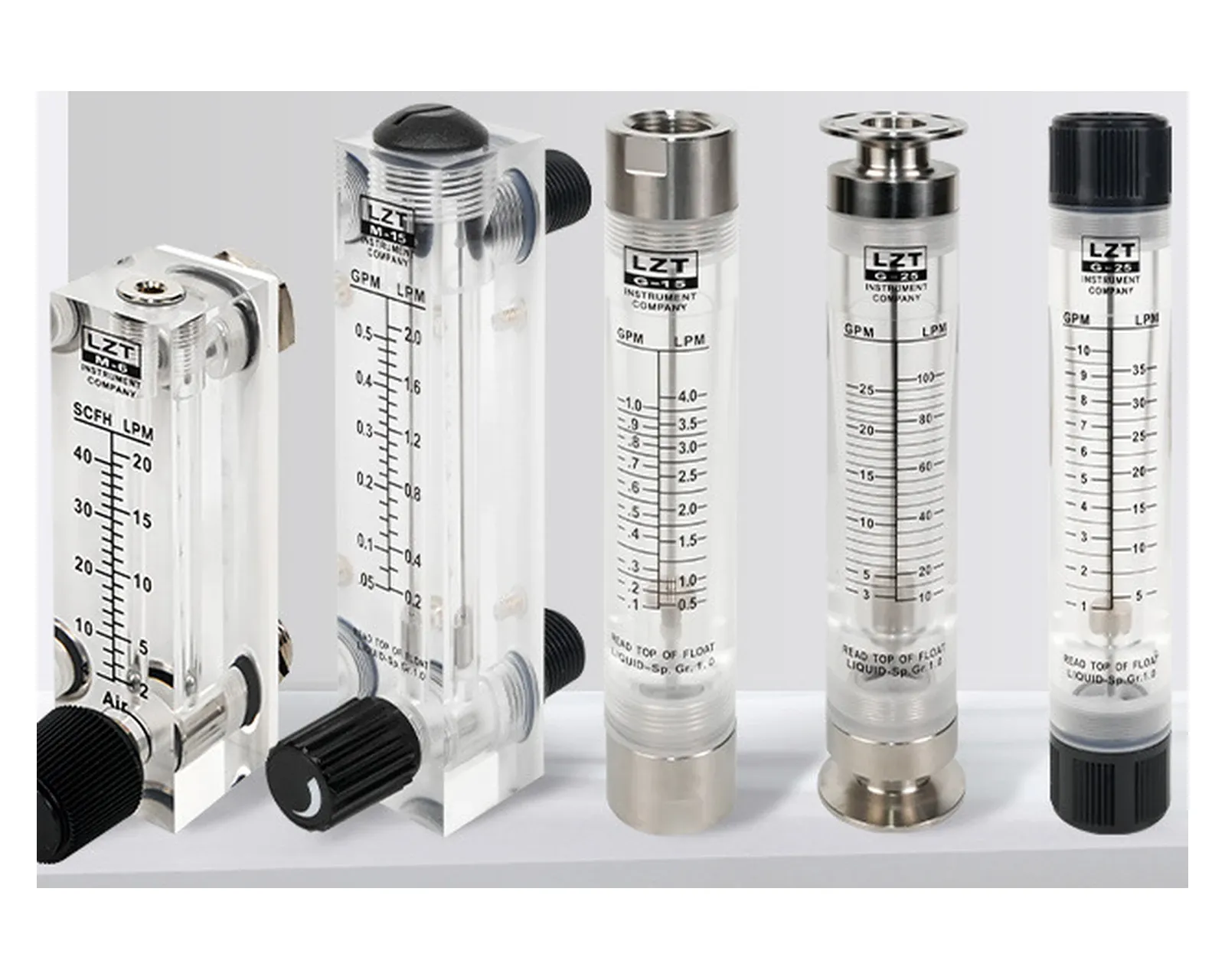

Product family
Acrylic Rotameters
LZT acrylic variable-area rotameters for low-flow liquid and gas measurement, with a direct-reading acrylic tube and panel-mount options.
• 0.1 mm Scale Reading • For Water & Air Treatment • 5-Minute Quick Maintenance
Products in this family
Acrylic Rotameters we build
Currently published products in the LZT family.
View product
Selection guidance
How to specify an acrylic rotameter
Three inputs decide the LZT configuration.
011
Medium
LZT meters are ordered for either liquid or gas service. The liquid and gas measuring ranges are listed separately, so confirm the medium first.
022
Measuring range
The LZT-6T offers several liquid ranges (from 2-20 to 10-100 LPH, plus 10-70 GPH) and gas ranges (0.1-1 to 10-100 L/min). Choose the range that brackets your normal flow.
033
Interface and valve
The panel interface is internal G1/4 in. The adjusting valve is optional: T = with valve, O = without. Interface and O-ring materials are selected from the LZT material code table.
Get a Quote
Need help choosing an acrylic rotameter?
Send the medium, measuring range, interface and connection details and we will confirm the suitable LZT configuration.
Include
Medium (liquid or gas), required measuring range, interface and connection details.
