LZT Acrylic Rotameter
LZT-M Acrylic Rotameter

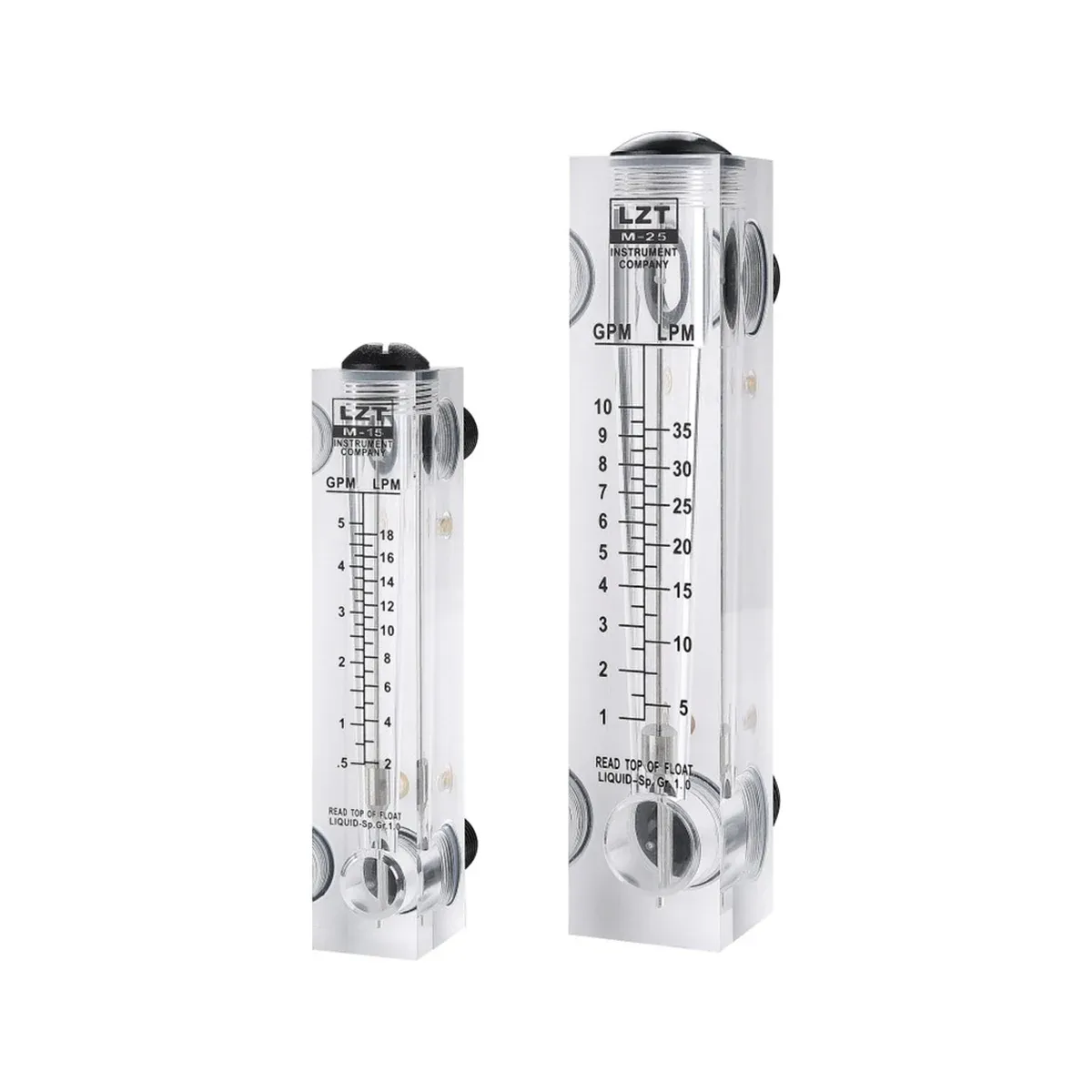

LZT-M panel-mount acrylic rotameter in sizes LZT-15 to LZT-40 for larger low-flow liquid and gas measurement, part of the LZT acrylic variable-area series.
Specifications
- Series
- LZT acrylic variable-area flow meter
- Model
- LZT-M (panel-mount, LZT-15 to LZT-40)
- Tube / Body Material
- Acrylic (organic glass) tube
- Medium
- Liquid or gas, depending on model selection
- Nominal Sizes
- LZT-15, LZT-20, LZT-25, LZT-40
- Connection
- External ZG1/2 in to ZG1-1/2 in (NPT1-1/2 in on LZT-40)
- Accuracy
- ±4% of full scale
- Wetted Material Options
- PVC / PP / ABS / brass / chrome-plated brass / stainless steel; O-ring silicone or fluoro rubber
Where the LZT-M Fits
The LZT-M is the panel-mount series of the LZT acrylic variable-area family, covering the larger panel sizes LZT-15, LZT-20, LZT-25 and LZT-40. It is used for direct-reading liquid or gas flow indication on a panel.
It shares the acrylic metering principle with the smaller LZT-4T and LZT-6T, but covers higher flow ranges and larger connection threads.
Construction and Specifications
The metering tube is acrylic (organic glass) and accuracy is ±4% of full scale. Liquid ranges are shown in GPM and LPM; gas ranges are shown in m³/h.
Connection threads run from external ZG1/2 in (LZT-15) to external ZG1-1/2 in / external NPT1-1/2 in (LZT-40). Interface material may be PVC, PP, ABS, brass, chrome-plated brass or stainless steel, and the O-ring may be silicone or fluoro rubber.
Ordering Guidance
Provide the medium (liquid or gas), the required flow range, the pipe size and the connection thread to confirm the LZT-M size and materials.
