LZT Acrylic Rotameter

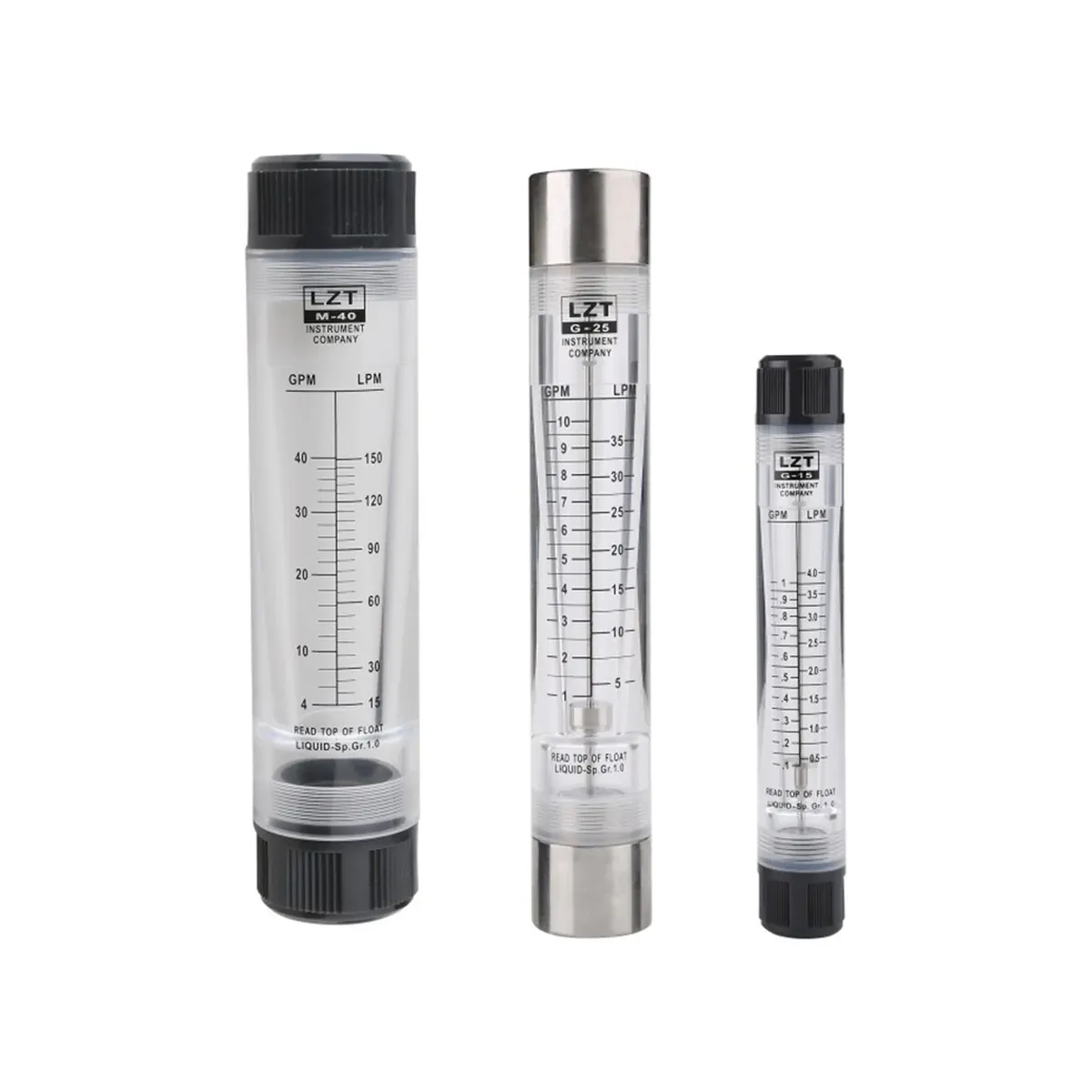

LZT-G Inline Acrylic Rotameter
LZT-G inline (piped) acrylic rotameter with threaded connection in DN15 to DN75, part of the LZT acrylic variable-area series.
Specifications
- Series
- LZT acrylic variable-area flow meter
- Model
- LZT-G (inline / piped type)
- Tube / Body Material
- Acrylic (organic glass) tube
- Medium
- Liquid or gas, depending on model selection
- Nominal Sizes
- DN15, DN20, DN25, DN40, DN50, DN75
- Connection
- Internal (ZG) or external (ZG) thread
- Accuracy
- ±4% of full scale
- Wetted Material Options
- PVC / PP / ABS / brass / chrome-plated brass / stainless steel; O-ring silicone, fluoro rubber or NBR
Where the LZT-G Fits
The LZT-G is the piped/inline version of the LZT acrylic variable-area meter. Unlike the panel-mount LZT-4T/6T/8T, it connects directly into the pipe run with internal or external threads.
It is used where the meter is installed inline rather than on a panel, in sizes from DN15 to DN75.
Construction and Specifications
The metering tube is acrylic (organic glass) and accuracy is ±4% of full scale. Connection threads run from internal ZG1/2 in (DN15G) up to internal/external ZG3 in (DN75G).
Liquid and gas ranges are tabulated by size. Interface material may be PVC, PP, ABS, brass, chrome-plated brass or stainless steel, and the O-ring may be silicone rubber, fluoro rubber or NBR.
Ordering Guidance
Provide the pipe size (DN), the connection type (internal or external thread), the medium and the required flow range to confirm the LZT-G scale and materials.
