LD Electromagnetic Flow Meter

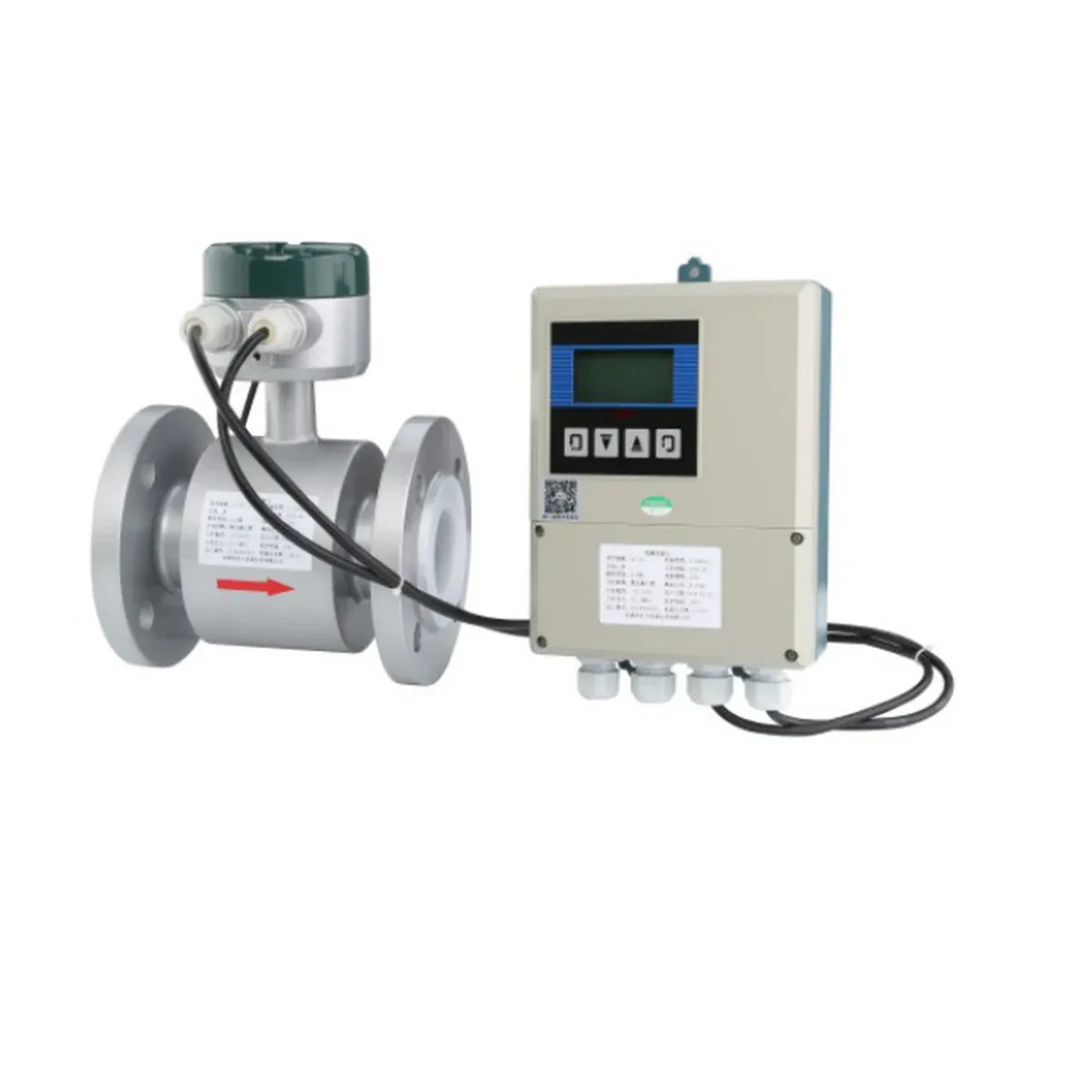

Split Type LD Electromagnetic Flow Meter
Split type (remote) LD electromagnetic flow meter with separated converter, DN15 to DN2200, for conductive liquids.
Product family
Electromagnetic Flow Meters

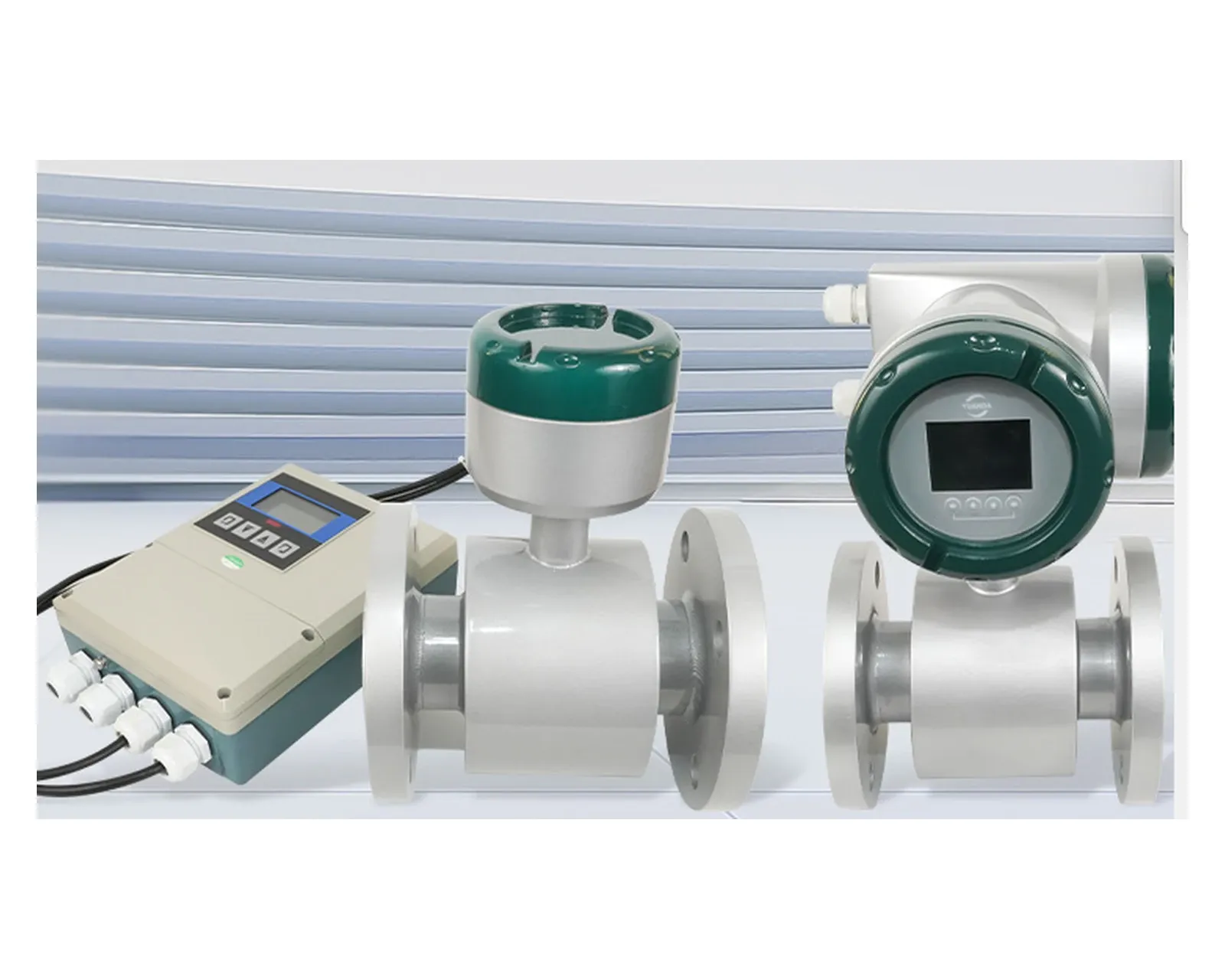

LD electromagnetic flow meters from DN15 to DN2200 for conductive liquids, in integrated and split (remote converter) versions.
• Accuracy ±0.5% • 100:1 Turndown Ratio • No Pressure Loss
Products in this family
Electromagnetic Flow Meters we build
Currently published products in the LD family.
View product
LD Electromagnetic Flow Meter

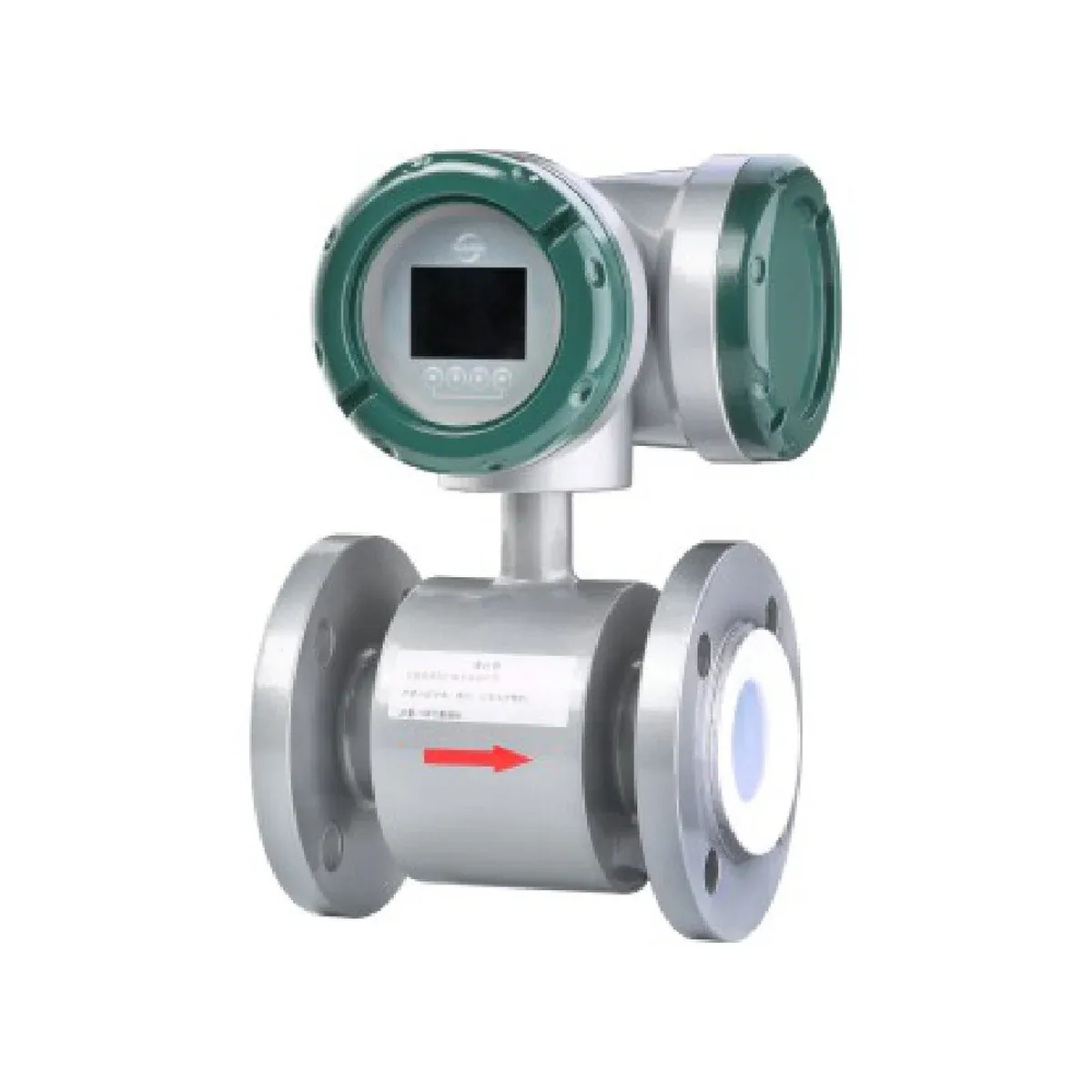

Integrated LD Electromagnetic Flow Meter
Integrated LD electromagnetic flow meter with compact converter, DN15 to DN2200, for conductive liquids and homogeneous liquid-solid suspensions.
Selection guidance
How to specify an electromagnetic flow meter
Three inputs decide the LD configuration.
011
Conductivity and medium
LD meters measure conductive liquids with a conductivity of at least 5 µS/cm. The catalog also covers strongly corrosive liquids and homogeneous liquid-solid two-phase suspensions such as slurry, ore pulp and paper pulp.
022
Pipe size and lining
Sizes run DN15 to DN2200. Liners include chloroprene rubber, polyurethane, PTFE, PFA and F46; electrodes are 316L, Hb, Hc, Ti, Ta or Pt.
033
Mounting and output
Choose integrated (medium up to 120 °C) or split type (up to 150 °C, rubber 80 °C). Output options are 4-20 mA, frequency or pulse, and RS485, on 220 VAC or 24 VDC.
Get a Quote
Need help choosing an electromagnetic flow meter?
Send the pipe size, medium and conductivity, flow range, pressure and temperature and we will confirm the electrode and liner selection.
Include
Pipe size, medium and conductivity, flow range, pressure, temperature and output.
