Plastic Tube Rotameter
Y Series Plastic Tube Rotameter

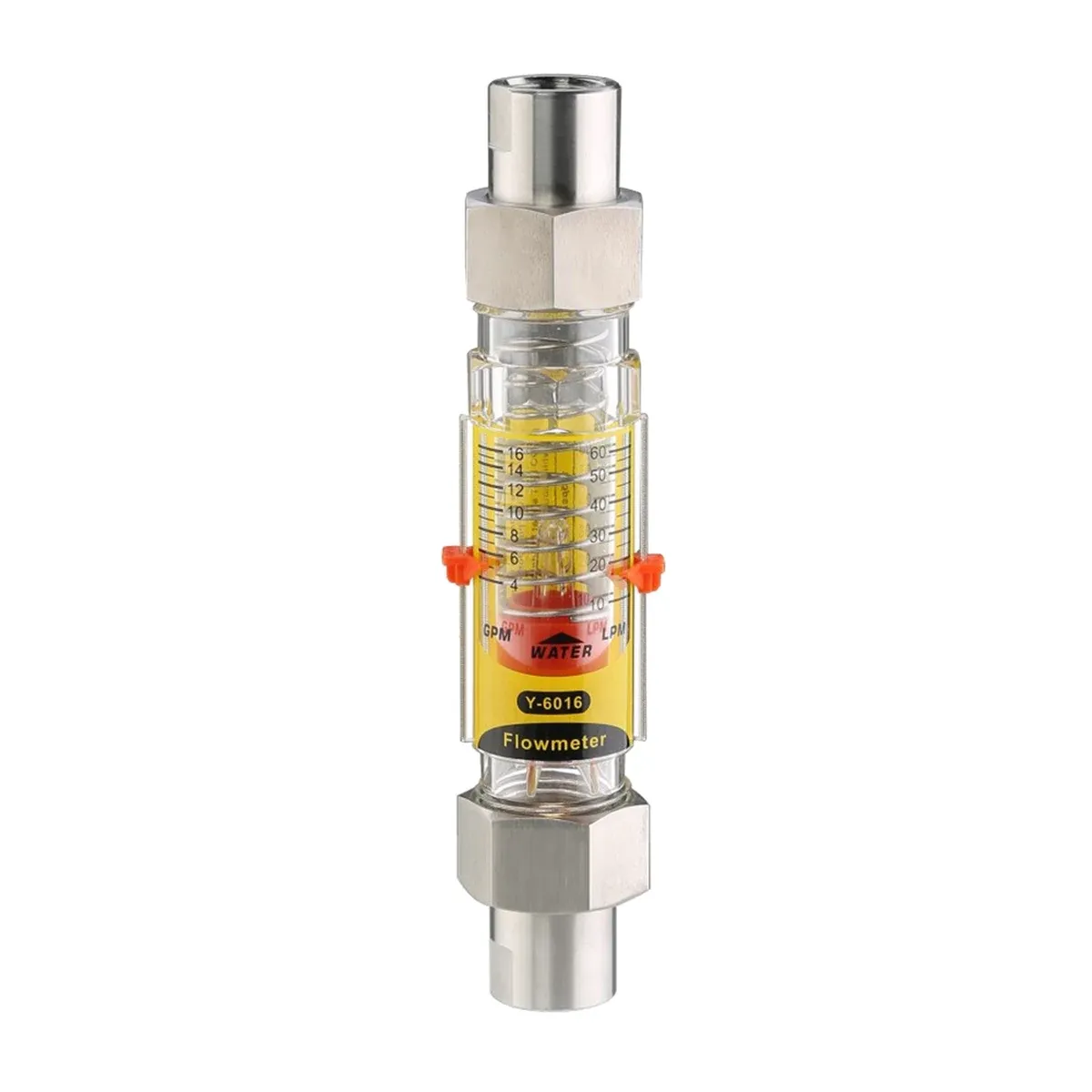

Y Series plastic tube rotameter with a polycarbonate or polysulfone body and spring-loaded float, giving direct-reading low-flow liquid indication that can be mounted at any angle, in sizes Y-6005 to Y-6100.
Specifications
- Series
- Y Series plastic tube rotameter
- Models
- Y-6005, Y-6007, Y-6010, Y-6016, Y-6018, Y-6025, Y-6028, Y-6050, Y-6080, Y-6100
- Tube / Body Material
- Polycarbonate (PC) or polysulfone (PSU)
- Medium
- Liquid (ranges calibrated for water at 20 °C)
- Mounting
- Spring-loaded float allows installation at any angle
- Working Pressure
- ≤ 1 MPa
- Working Temperature
- PC 0-80 °C; PSU 0-120 °C
- Accuracy
- ±6%
- Flow Ranges
- 0.5-5 to 10-100 GPM (2-20 to 40-380 LPM) depending on model
- Interface Thread
- ZG/G1/2 in, G3/4 in or G1 in (Y-6005 to Y-6028); ZG/G1-1/2 in or G2 in internal and 2 in plastic-tube barb (Y-6025 to Y-6100)
- Interface Material Options
- Brass, stainless steel, PP or PVC (default stainless steel)
Where the Y Series Fits
The Y Series is a plastic tube variable-area flow meter for direct-reading low liquid flows. Its body is made of polycarbonate (PC) or polysulfone (PSU), and because the float moves under spring compression the meter can be installed at any angle.
It is a separate series from the LZS plastic tube rotameters: the Y Series has its own Y-60xx model codes, a PC or PSU body and a spring-loaded float, with ranges given in GPM and LPM.
Construction and Specifications
Working pressure is up to 1 MPa. The working temperature range is 0-80 °C for the polycarbonate body and 0-120 °C for the polysulfone body, and accuracy is ±6%.
Water ranges at 20 °C run from 0.5-5 GPM (2-20 LPM) on the Y-6005 up to 10-100 GPM (40-380 LPM) on the Y-6100. Interface threads cover ZG/G1/2 in, G3/4 in and G1 in on the smaller models and ZG/G1-1/2 in or G2 in with a 2 in plastic-tube barb on the larger models.
Interface material may be brass, stainless steel, PP or PVC; the catalog lists stainless steel as the default interface material. A red flow scale card aids reading.
Ordering Guidance
Provide the medium, the required flow range, the connection thread and the interface material to confirm the Y Series model.
