011
Medium
LW turbine meters suit clean, low-viscosity liquid in closed pipes. The catalog states the sensor has high accuracy and can withstand high working pressure.
Product family
Turbine Flow Meters
LW turbine flow meters for clean, low-viscosity liquids from DN4 to DN200, with flange, thread or clamp connections.
• For clean, low-viscosity liquids • Sizes DN4 to DN200 • Flange, thread or clamp connection
Product
LW Turbine Flow Meter

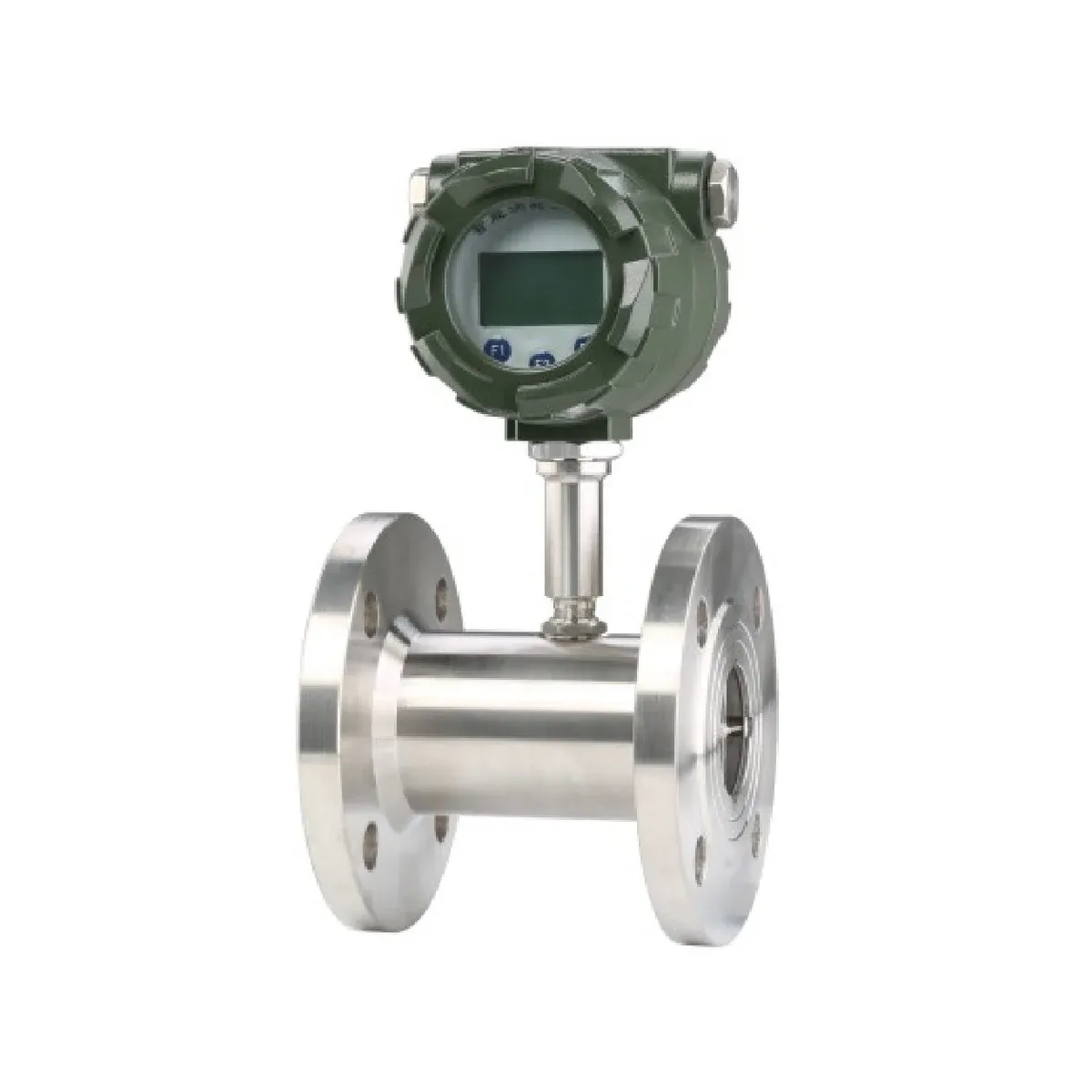

LW flanged turbine flow meter with electronic display for clean, low-viscosity liquids, DN4 to DN200.
Selection guidance
How to specify a turbine flow meter
Three inputs decide the LW configuration.
022
Size and connection
Sizes run DN4 to DN200 with flange, thread or clamp connections and integrated or split mounting.
033
Accuracy and output
Accuracy is 0.5% or 1.0% by size and type. The medium temperature range is -20 to +100 °C, with pressure ratings of 1.6, 2.5 or 6.3 MPa by size.
Get a Quote
Need help choosing a turbine flow meter?
Send the medium, pipe size, flow range, pressure and temperature plus the connection and output you need and we will confirm the model code.
Include
Medium, pipe size, flow range, pressure, temperature, connection and output.
