LZZX Micro-Flow Metal Tube Rotameter

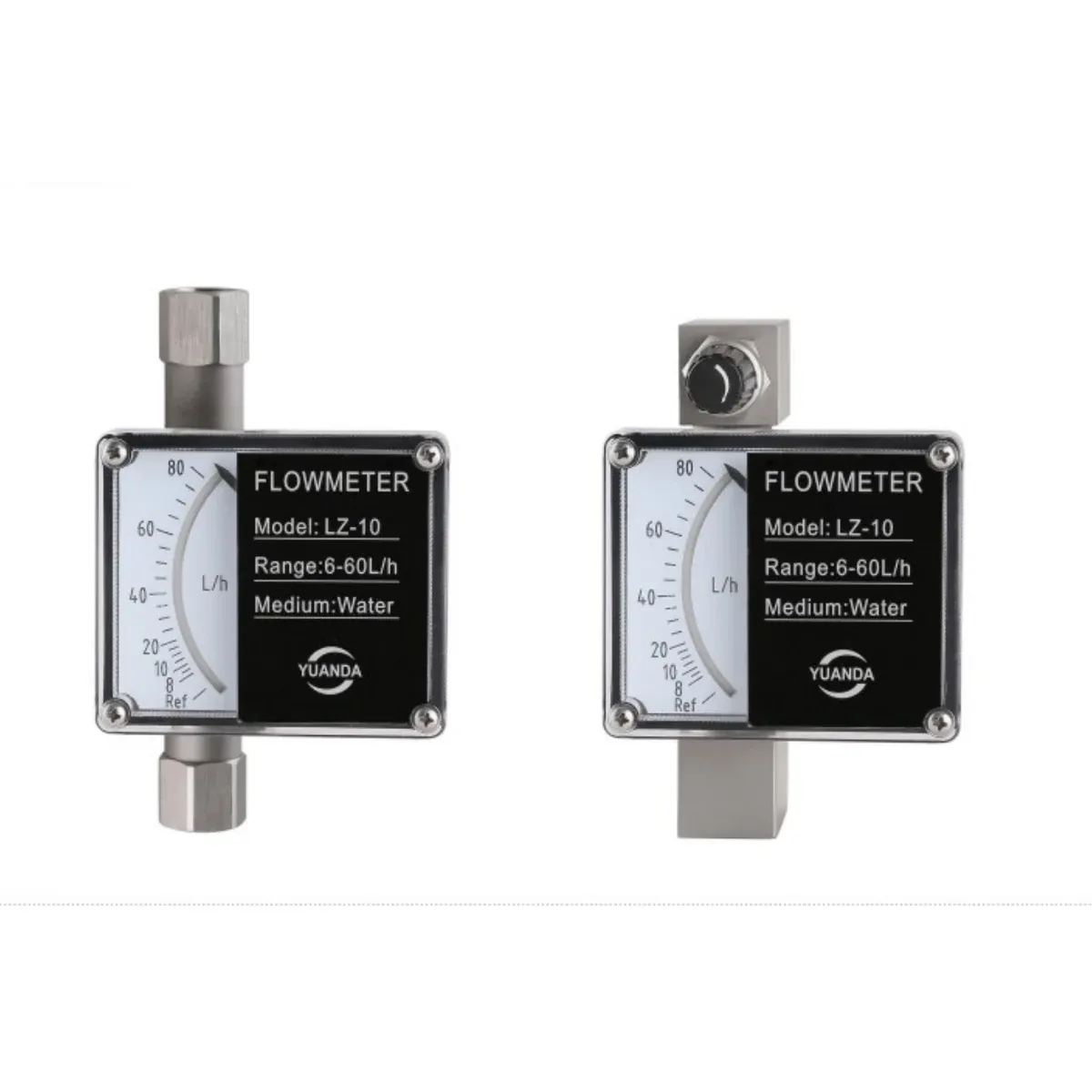

LZZX all-stainless micro-flow metal tube rotameter with pointer indication, DN6 and DN10 with NPT connections, rated to 16 MPa and -40 to +120 °C for very small flows at high pressure.
Specifications
- Series
- LZZX micro-flow metal tube rotameter (all-stainless, pointer indication)
- Models
- LZZX-6 (DN6), LZZX-10 (DN10)
- Nominal Sizes
- DN6 and DN10 (tube bore 6-10 mm)
- Water Flow Ranges
- LZZX-6: 0.1-1 to 10-100 L/h (11 selectable spans); LZZX-10: 10-100 to 30-300 L/h (5 selectable spans)
- Air Flow Ranges
- LZZX-6: 3.5-35 to 310-3100 L/h; LZZX-10: 320-3200 to 900-9000 L/h
- Accuracy
- Class 2.5 / 4.0
- Maximum Working Pressure
- 16 MPa
- Medium Temperature
- -40 to +120 °C
- Ambient Temperature
- -40 to +80 °C
- Connections
- Inner NPT1/4 in (LZZX-6); inner NPT3/8 in (LZZX-10); family NPT options 1/4, 1/2, 3/4 and 1 in
- Wetted Materials
- Measuring tube 304 or 316 stainless steel; float 304 or 316; indicator stainless steel or aluminium alloy
- Viscosity Limits
- ≤ 5 mPa·s (1/2 in NPT); ≤ 250 mPa·s (1 in NPT)
- Pressure Loss
- 8-17 mbar depending on span
- Installation
- Bottom-in top-out, or side-in side-out
- Standard
- JB/T 16844-1993
Where the LZZX Fits
The LZZX is an all-stainless micro-flow metal tube rotameter for very small liquid and gas flows at high working pressure. With a maximum working pressure of 16 MPa and a medium temperature range of -40 to +120 °C, it serves high-pressure injection, dosing, sampling and test-bench lines that glass tubes cannot handle.
It is distinct from the flanged LZ M1/M2/M3 metal tube meters (DN15-150, up to 4.0 MPa) and from the LZB-WB glass micro-flow line (up to 1 MPa): the LZZX combines NPT thread connections, DN6/DN10 micro sizes and a 16 MPa rating in an all-stainless body.
Construction and Specifications
Two models cover DN6 and DN10. Water spans start at 0.1-1 L/h on the LZZX-6 and reach 30-300 L/h on the LZZX-10, each with several selectable ranges; air spans run from 3.5-35 L/h up to 3100-3100 L/h class. Accuracy is class 2.5 or 4.0 depending on model.
Connections are inner NPT1/4 in on the LZZX-6 and inner NPT3/8 in on the LZZX-10. The measuring tube and float are 304 or 316 stainless steel and the pressure loss is 8-17 mbar depending on span.
Ordering Guidance
Provide the medium, the exact flow span, the line pressure, the NPT size and the installation position (bottom-in top-out or side-in side-out) to confirm the LZZX model and range.
