LZS Plastic Tube Rotameter

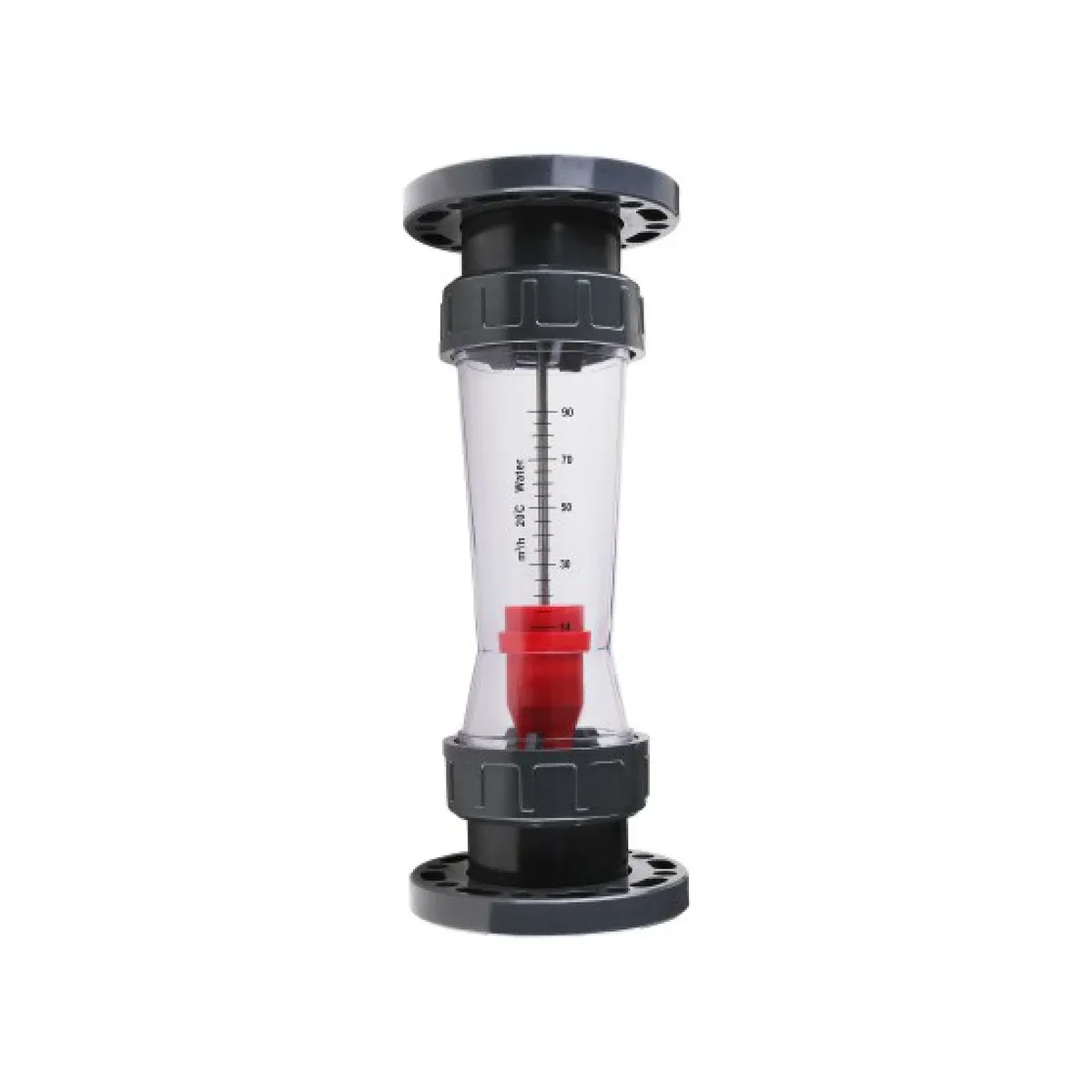

LZS Flange Type Plastic Tube Rotameter
LZS flange type plastic tube rotameter in DN15 to DN300, for larger plastic-body liquid flow indication with flange connection.
Specifications
- Series
- LZS durable plastic tube rotameter
- Connection Type
- Flange
- Nominal Sizes
- DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300
- Accuracy
- ±4% of full scale
- Medium Temperature
- 0 to +60 °C
- Working Pressure
- ≤ 0.6 MPa (DN15-DN150); ≤ 0.4 MPa (DN200-DN300)
- Cone Tube Material
- AS
- Connector / Screw Cap
- PVC
- Stops Material
- PE
- Float Material
- ABS
Where the LZS Flange Type Fits
The LZS flange type extends the LZS plastic tube family to larger pipe sizes. It is selected where a plastic-body meter with a flange connection is required, from DN15 up to DN300.
It uses the same LZS measuring principle as the socket/threaded type but is supplied with flange end fittings.
Construction and Specifications
Accuracy is ±4% of full scale. The medium temperature range is 0 to +60 °C. Working pressure is up to 0.6 MPa for DN15 to DN150 and up to 0.4 MPa for DN200 to DN300.
Liquid ranges are tabulated in l/h for the smaller sizes and m³/h for the larger sizes. Part materials follow the LZS series: cone tube AS, connector and screw cap PVC, stops PE, float ABS.
Ordering Guidance
Send the pipe size, flange standard, required flow range and the medium. The LZS flange body is quoted per size from DN15 to DN300.
