LZS Plastic Tube Rotameter
LZS-E Plastic Tube Rotameter

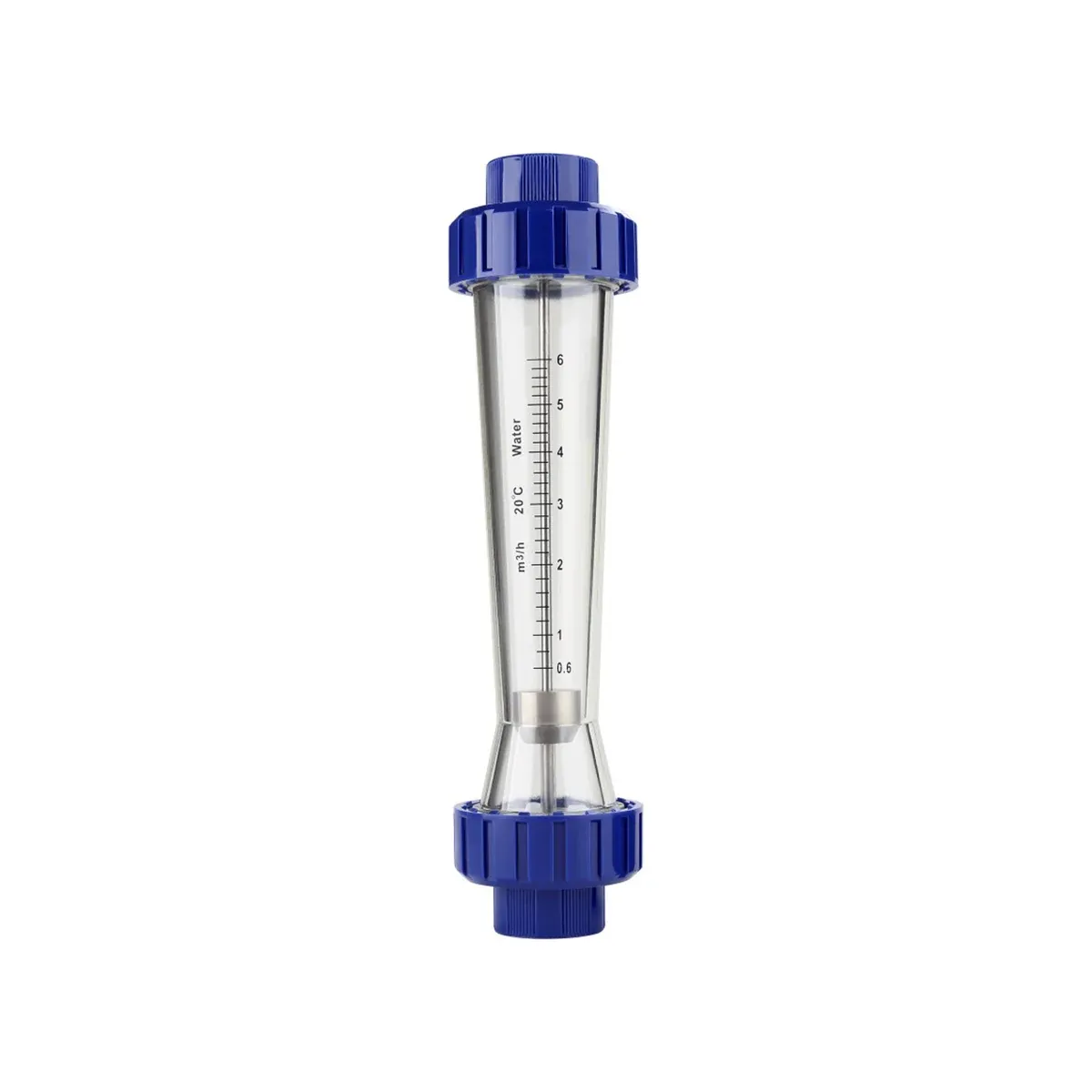

LZS-E plastic tube rotameter with PC or PSU cone tube, available with insert, threaded or panel connection in sizes DN15 to DN65.
Specifications
- Series
- LZS durable plastic tube rotameter
- Model
- LZS-E (DN15-DN65)
- Cone Tube Material
- Polycarbonate (PC) or polysulfone (PSU)
- Connector Material
- PVC
- Float Material
- Stainless steel or ABS
- Connection Types
- Insert (socket), internal/external thread, panel mounting
- Nominal Sizes
- DN15, DN25, DN32, DN50, DN65
- Accuracy
- ±4%
- Working Temperature
- 0 to +60 °C (E type); 0 to +100 °C (EG type)
- Working Pressure
- ≤ 1 MPa
Where the LZS-E Fits
The LZS-E is a plastic tube rotameter in the LZS durable-plastic family. It is used for inline liquid flow indication where a plastic, corrosion-tolerant meter is preferred.
It is offered with insert (socket) connection, internal or external thread, or panel mounting, so it can match different pipework and panel arrangements.
Construction and Specifications
The cone tube is polycarbonate (PC) or polysulfone (PSU); the upper and lower connectors are PVC; the float is stainless steel or ABS. Accuracy is ±4%.
Working temperature is 0 to +60 °C for the standard E type and 0 to +100 °C for the EG type, with working pressure up to 1 MPa. Sizes run from DN15 to DN65.
Ordering Guidance
Confirm the pipe size (DN), the connection type (insert, thread or panel), the measuring range and the medium so the LZS-E body and float can be specified.
