LZB Glass Tube Rotameter
LZB-S Water Meter Calibration Rotameter

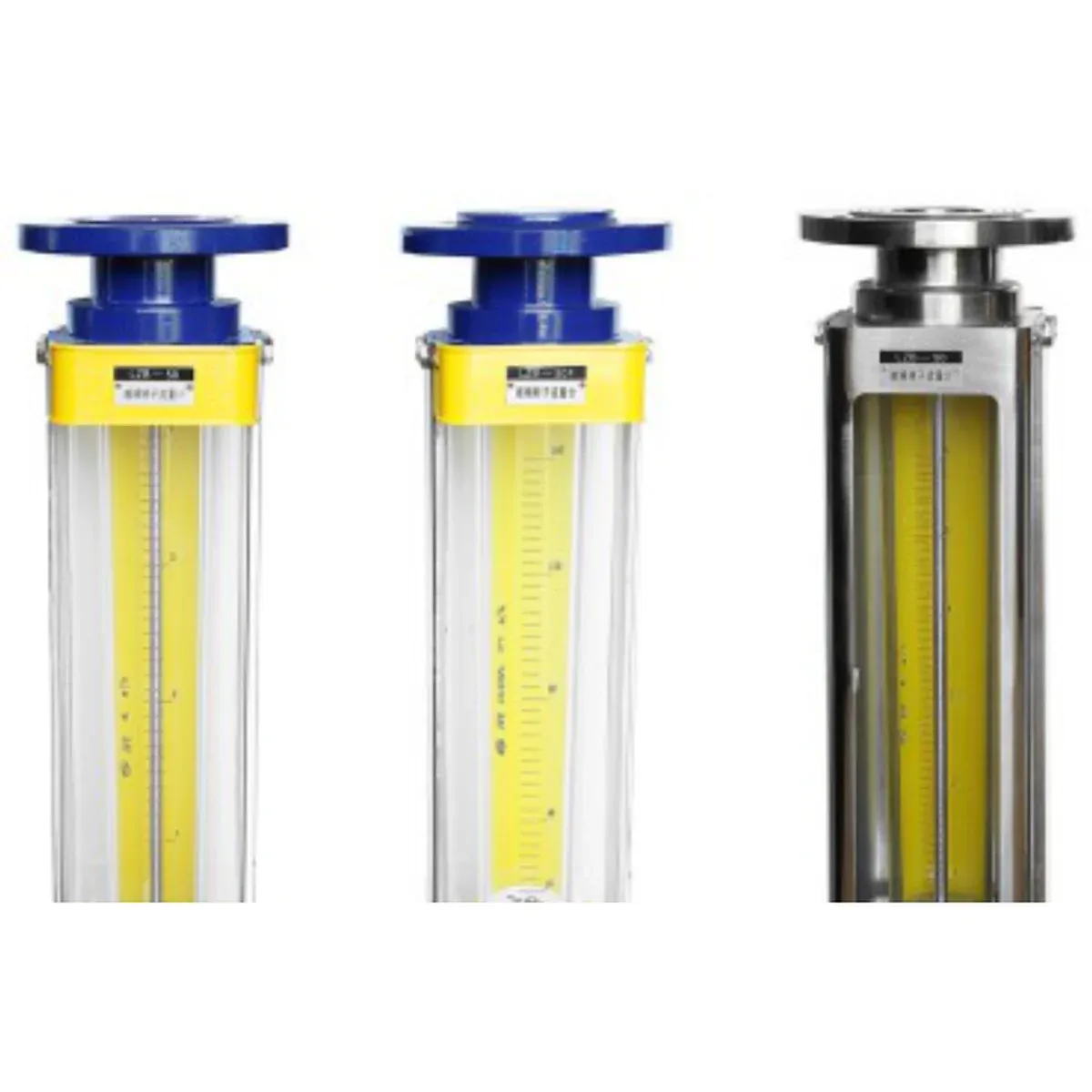

LZB-S flanged glass tube rotameter calibrated to ±1.5% for water, dedicated to water-meter test benches and other verification duties, in DN15, DN25, DN50 and DN80 with a full-stainless-steel option.
Specifications
- Series
- LZB-S glass tube rotameter, water-meter test bench dedicated
- Models
- LZB-15S, LZB-25S, LZB-50S, LZB-80S
- Nominal Sizes
- DN15, DN25, DN50, DN80
- Accuracy
- ±1.5%
- Water Flow Ranges
- LZB-15S: 4-128 L/h; LZB-25S: 120-1400 L/h; LZB-50S: 1.4-9 m³/h; LZB-80S: 9-40 m³/h
- Pressure Rating
- PN0.6 MPa (DN15, DN25, DN50); PN0.4 MPa (DN80)
- Medium
- Water
- Material Options
- Full stainless steel version LZB-□□S/B (or B0) available
- Limitation
- Anticorrosive version not available in this series
Where the LZB-S Fits
The LZB-S series is the factory's dedicated flow meter for water-meter test benches: each size is calibrated to ±1.5% for water so that a test bench can verify water meters against a stable reference. The series can also be used in other applications that need the same reference duty.
It differs from the standard LZB line, which is a general industrial meter: the LZB-S carries the tighter ±1.5% calibration across all four sizes, and it is offered with a full stainless steel version (LZB-□□S/B or B0). An anticorrosive version is not available in this series.
Construction and Specifications
Four sizes cover DN15, DN25, DN50 and DN80 with water ranges of 4-128 L/h, 120-1400 L/h, 1.4-9 m³/h and 9-40 m³/h respectively. The pressure rating is PN0.6 MPa for DN15-DN50 and PN0.4 MPa for DN80, with flanged connections.
Ordering Guidance
Confirm the water flow range and the pipe DN against the table, choose the standard or full-stainless material version, and state whether the meter is destined for a water-meter test bench so the calibration documents can be prepared accordingly.
