LZB Glass Tube Rotameter
LZB-FA100 Glass Tube Rotameter

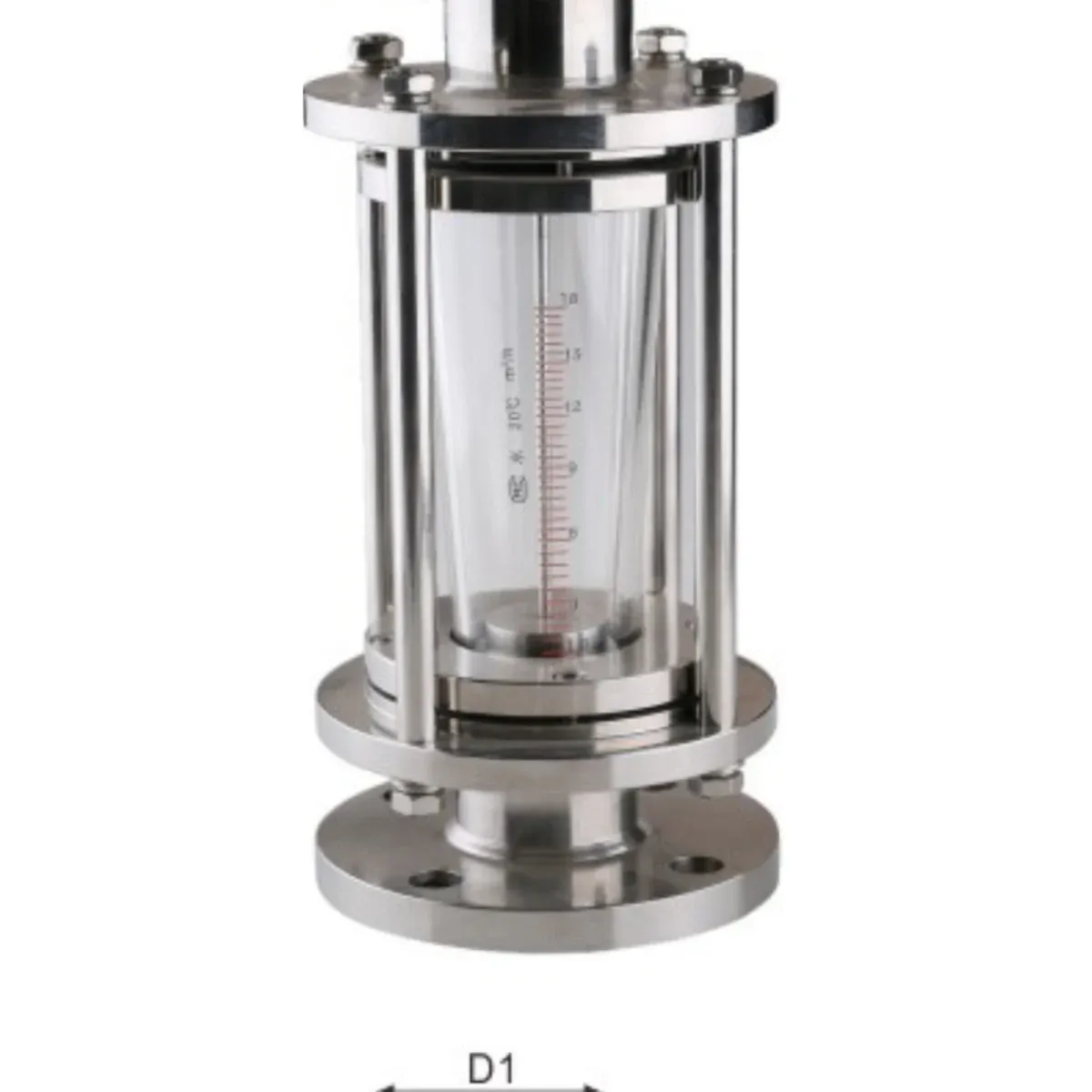

LZB-FA100 flanged glass tube rotameter in a stainless steel protective frame, covering DN15 to DN100 for transparent liquids and gases in petroleum, chemical, electronics, environmental protection, power and pharmaceutical plants.
Specifications
- Series
- LZB-FA100 glass tube rotameter, stainless steel protective frame
- Models
- FA100-15, FA100-20, FA100-25, FA100-32, FA100-40, FA100-50, FA100-65, FA100-80, FA100-100
- Nominal Sizes
- DN15 to DN100 (nine sizes)
- Water Flow Ranges
- 30-300 L/h (DN15) to 6-60 m³/h (DN100), selectable per size
- Air Flow Ranges
- 10-100 NL/min (DN15) to 90-900 Nm³/h (DN100), selectable per size
- Working Pressure
- ≤ 0.8 MPa (DN15-32); ≤ 0.6 MPa (DN40-65); ≤ 0.4 MPa (DN80-100)
- Connection
- Flanged; outline dimensions tabulated per size (face-to-face 260-410 mm)
- Suitable Media
- Low-speed, high-temperature, particle-free transparent liquids or gases (catalog statement)
- Applications
- Petroleum, chemical, electronics, environmental protection, power and pharmaceutical industries (catalog statement)
Where the LZB-FA100 Fits
The LZB-FA100 is the industrial member of the LZB glass tube family: the measuring cone is protected by a stainless steel frame with flanged connections, built for plant piping rather than panel or bench duty.
The catalog positions it for low-speed, high-temperature, particle-free transparent liquids or gases, and lists petroleum, chemical, electronics, environmental protection, power and pharmaceutical plants among its applications.
Construction and Specifications
Nine sizes run from DN15 to DN100. Water ranges start at 30-300 L/h on DN15 and reach 6-60 m³/h on DN100; air ranges start at 10-100 NL/min and reach 90-900 Nm³/h, with several selectable spans per size.
Working pressure depends on the size group: up to 0.8 MPa on DN15-32, 0.6 MPa on DN40-65 and 0.4 MPa on DN80-100.
Ordering Guidance
Select the FA100 size for the pipe, then the flow span from the catalog table for the medium. Face-to-face length and flange drilling are tabulated per size for piping preparation.
