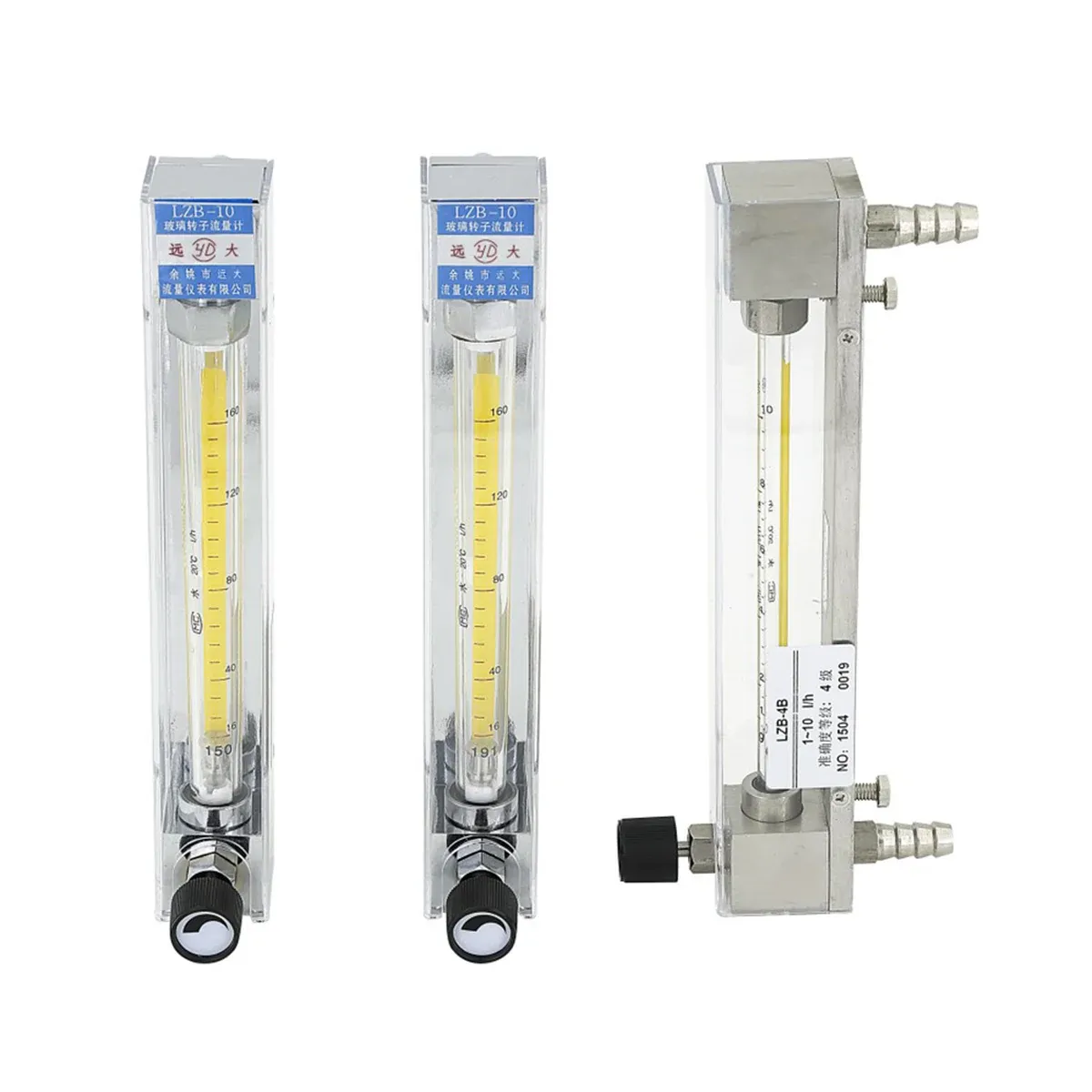

LZB Glass Tube Rotameter
LZB-4.6.10 Glass Tube Rotameter
LZB-4, LZB-6 and LZB-10 small-size glass tube rotameters, DN4 to DN10 with hose-barb connections, for low liquid and gas flow measurement between the micro LZB-2-3 sizes and the DN15-100 standard sizes.
Specifications
- Series
- LZB glass tube rotameter
- Model
- LZB-4, LZB-6, LZB-10 (small size)
- Nominal Sizes
- DN4 (LZB-4), DN6 (LZB-6), DN10 (LZB-10)
- Connection
- Hose-barb (baota) fitting: dia 10 mm on LZB-4 / LZB-6, dia 11 mm on LZB-10
- Pressure Rating
- PN1.0 MPa
- Medium Temperature
- 0 to +100 °C
- Accuracy
- ±4% of full scale on LZB-4; ±2.5% on LZB-6 and LZB-10
- Range Ratio
- 1:10
- Variants
- All-stainless LZB-4B / LZB-6B / LZB-10B (304 stainless steel, excluding taper tube and seals)
- Liquid Ranges
- LZB-4: 1-10 to 2.5-25 L/h; LZB-6: 2.5-25 to 6-60 L/h; LZB-10: 6-60 to 16-160 L/h
- Gas Ranges
- LZB-4: 16-160 to 25-250 L/h and 0.04-0.4 m³/h; LZB-6: 0.04-0.4 to 0.1-1 m³/h; LZB-10: 0.1-1 to 0.5-5 m³/h
- Wetted Materials
- High-borosilicate glass taper tube; chrome-plated brass and stainless-steel base and needle valve; PTFE stop; agate or 304 stainless-steel float
Where the LZB-4.6.10 Fits
The LZB-4, LZB-6 and LZB-10 are the small-size glass tube rotameters in the LZB family. They cover direct-reading low liquid and gas flows above the micro LZB-2 and LZB-3 sizes and below the DN15 to DN100 standard bodies.
Typical duties are laboratory, analytical, sampling and small process lines where a compact direct-reading indicator is enough.
Construction and Specifications
The bodies are DN4, DN6 and DN10 with hose-barb fittings (dia 10 mm on LZB-4 and LZB-6, dia 11 mm on LZB-10). Pressure rating is PN1.0 MPa and the medium temperature range is 0 to +100 °C.
Accuracy is ±4% of full scale on the LZB-4 and ±2.5% on the LZB-6 and LZB-10, with a 1:10 range ratio. Liquid ranges run from 1-10 L/h up to 16-160 L/h and gas ranges from 16-160 L/h up to 5 m³/h, depending on size.
All-stainless variants LZB-4B, LZB-6B and LZB-10B are available in 304 stainless steel, excluding the glass taper tube and the seals.
Ordering Guidance
Provide the medium (liquid or gas), the required flow range, the connection and the pipe size to confirm the LZB size and whether a standard or all-stainless variant is needed.
