LZB Glass Tube Rotameter
LZB-4-6-10 Corrosion-Resistant Glass Tube Rotameter

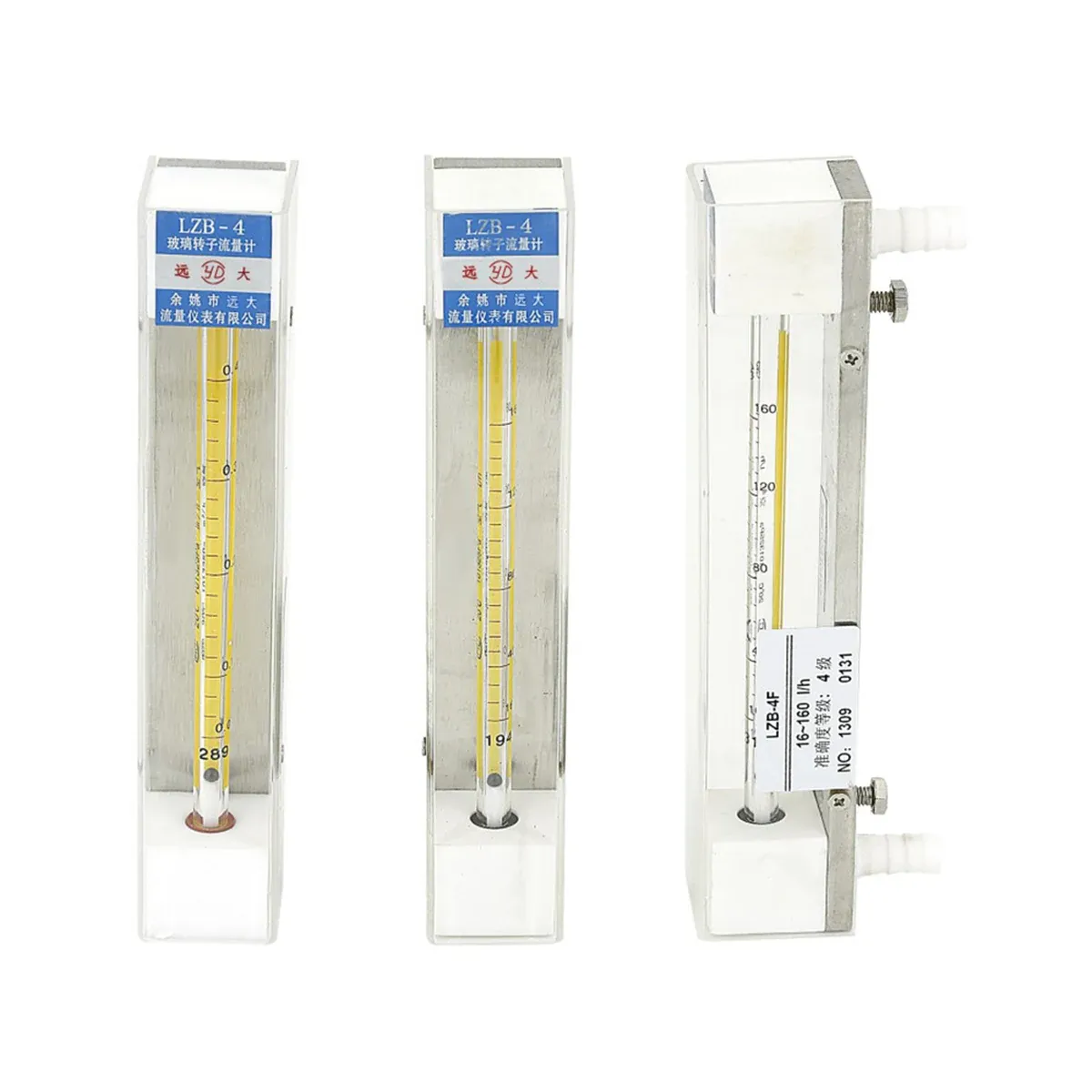

LZB-4F, LZB-6F and LZB-10F small-size anticorrosive glass tube rotameters, DN4 to DN10 with hose-barb connections and a PTFE base, for corrosive liquid and gas flow measurement.
Specifications
- Series
- LZB glass tube rotameter (anticorrosive F type)
- Model
- LZB-4F, LZB-6F, LZB-10F (small size, anticorrosive)
- Nominal Sizes
- DN4 (LZB-4F), DN6 (LZB-6F), DN10 (LZB-10F)
- Connection
- Hose-barb (baota) fitting, dia 11 mm on all three sizes
- Base Material
- PTFE base for the DN2 to DN10 anticorrosive type
- Pressure Rating
- PN1.0 MPa
- Medium Temperature
- 0 to +100 °C
- Accuracy
- ±4% of full scale
- Range Ratio
- 1:10
- Liquid Ranges
- LZB-6F: 1-10 and 1.6-16 L/h; LZB-10F: 2.5-25 to 16-160 L/h
- Gas Ranges
- LZB-6F: 0.04-0.4 to 0.1-1 m³/h; LZB-10F: 0.1-1 to 0.25-2.5 m³/h
Where the LZB-4-6-10 Anticorrosive Fits
The LZB-4F, LZB-6F and LZB-10F are the anticorrosive versions of the small-size LZB glass tube rotameters. In this series the anticorrosive type is intended for measuring corrosive liquid and gas media, and its base is made of PTFE.
They are the compact counterpart to the larger DN15 to DN100 LZB corrosion-resistant bodies and are used where a small direct-reading indicator must handle a corrosive medium.
Construction and Specifications
Sizes are DN4, DN6 and DN10 with dia 11 mm hose-barb fittings. Pressure rating is PN1.0 MPa, the medium temperature range is 0 to +100 °C, accuracy is ±4% of full scale and the range ratio is 1:10.
Liquid ranges run from 1-10 L/h up to 16-160 L/h and gas ranges from 0.04-0.4 m³/h up to 0.25-2.5 m³/h, depending on size.
Ordering Guidance
Confirm the medium, its concentration and the required flow range with the factory, then choose the LZB-F size and connection that matches the line. Do not assume chemical compatibility beyond the PTFE base stated for this type.
