Product family
KF600 bypass orifice plate flow meters from DN10 to DN500, with AT threaded, AF flanged, AC clamp and AD separated connection types.
• DN10 to DN500 for water and air • AT threaded / AF flanged / AC clamp / AD separated • Accuracy ±3%, working pressure ≤1.0 MPa
Products in this family
Currently published products in this family.

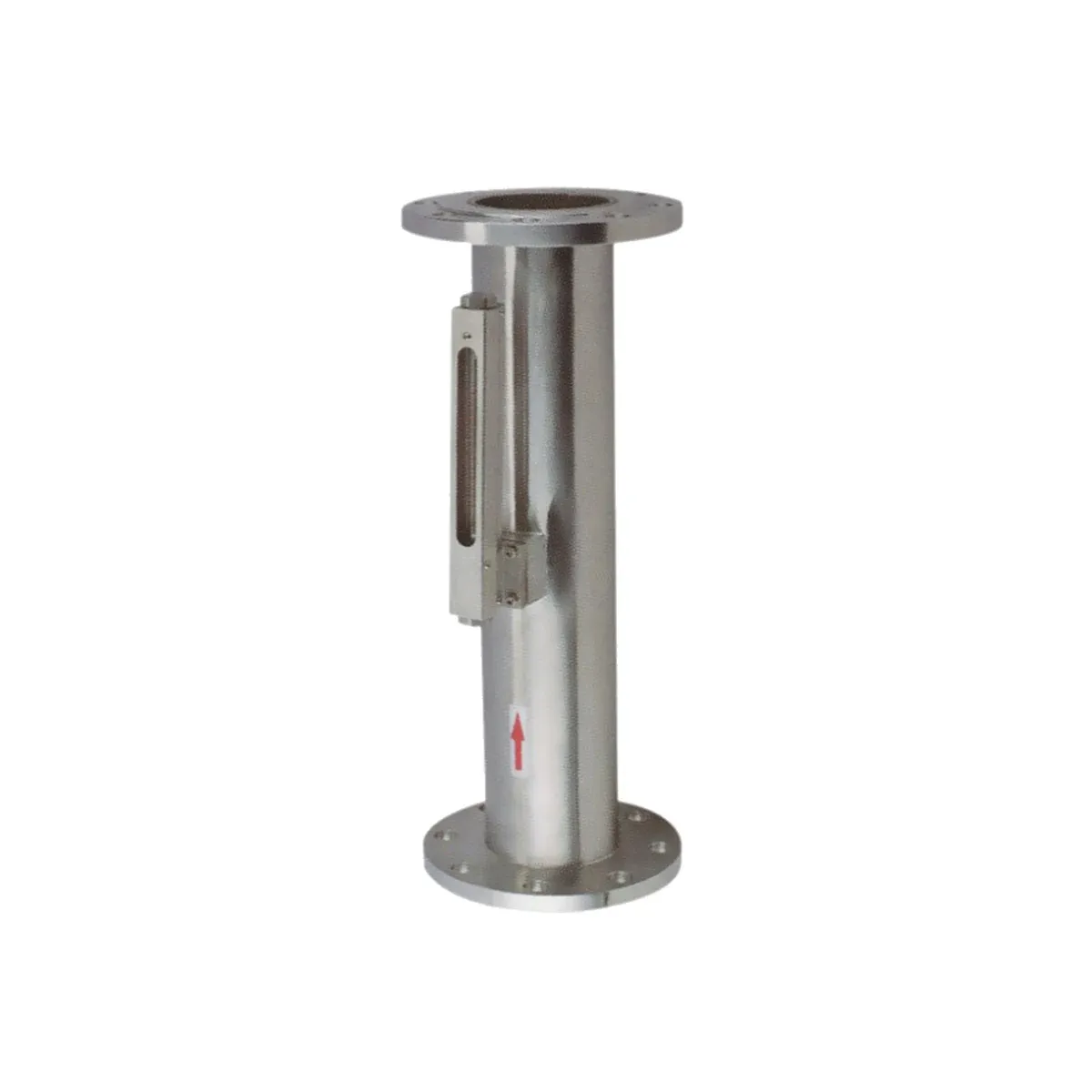

KF600 bypass orifice plate flow meter with an integrated orifice plate and a parallel glass-tube float indicator, available in AT threaded, AF flanged, AC clamp and AD separated connection types from DN10 to DN500.
Selection guidance
Three inputs decide the KF600 configuration.
Choose AT threaded, AF flanged, AC clamp (wafer) or AD separated type. AT and AC suit compact lines, AF joins flanged piping, and AD separates the indicator for remote reading.
Nominal sizes run DN10 to DN500. The measuring tube is PVC for 0-60 °C service or SS304 for 0-120 °C service.
Water ranges span 0.1-0.5 m³/h up to 500-2500 m³/h and air ranges 0.8-4 Nm³/h up to 5000-24000 Nm³/h. Allow an upstream straight run of 10D (12D after a fully open valve) and 5D downstream.
Get a Quote
Send the medium, pipe size, flow range, connection type and working pressure and we will confirm the suitable KF600 configuration.
Medium, pipe size, flow range, connection type and working pressure.
